Closed Edge Wire Mesh With Selvage Style: Welded Selvage Closed Selvage Returned Selvage And Flash
Brief introduction

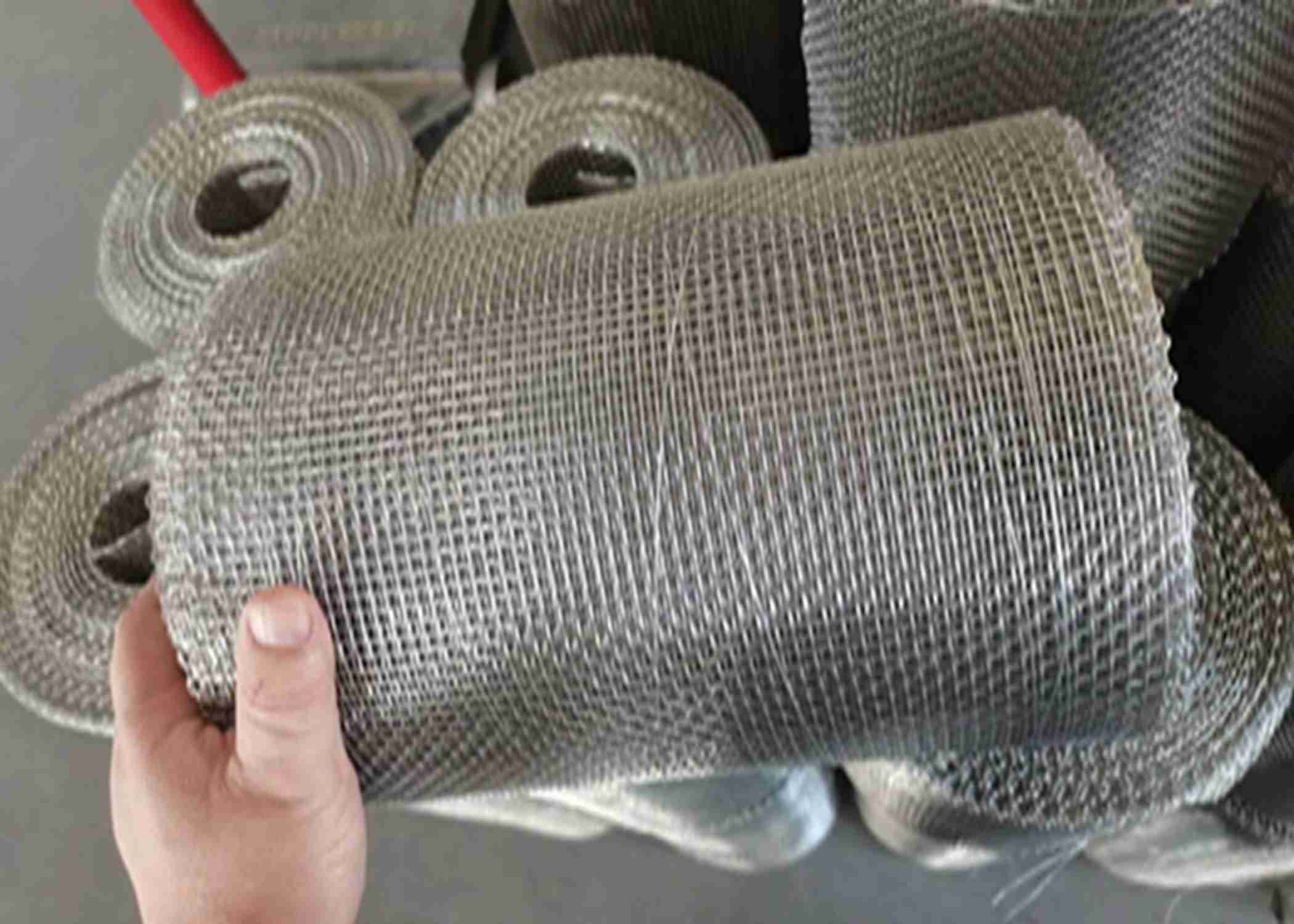

Stainless steel woven wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.
Generally speaking, the way to deal with the edge of the woven mesh is raw edge and the closed edge. So whenever we need to buy the woven mesh, we always look blank and don’t know what to choose.
In fact, they are easy to distinguish. Between the two edges of the metal mesh if the two adjacent metal wires are connected they are a closed edge if not they are a raw edge. The benefit of the closed edge is not easy to fall off, sturdy structure and there is no need to worry about it will pierce your hand for the practice have proved it is very e.
Although its cost is relatively high, its advantages are unique. Therefore, if the budget is plentiful, I still recommend that you choose a woven mesh with a closed edge.
Materials: SS304 316, 304L, 316L, etc.
Standard: AISI, SUS, EN.
Weaving: plain woven wire cloth.
Specification:
| Mesh/Inch | Wire Diameter | Aperture | Open Area
(%) | Weight
(kg /Square meter) |
| Inch | MM | Inch | MM |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 81.2 | 2.7 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 79.5 | 2.6 |
| 6x6 | .035 | 0.89 | .145 | 3.68 | | 2.1 |
| 8 x 8 | .32 | 0.81 | .113 | 2.88 | | 2.6 |
| 10X10 | .025 | .64 | .075 | 1.91 | 74.9 | 2.0 |
| 12X12 | .020 | .508 | .063 | 1.60 | 75.9 | 1.5 |
| 14X14 | .020 | .508 | .051 | 1.30 | 71.9 | 1.8 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 71.2 | 1.6 |
| 18X18 | .017 | .432 | .0386 | .98 | 69.4 | 1.6 |
| 20X20 | .020 | .240 | .0300 | .76 | 76.0 | .56 |
| 20X20 | .016 | .330 | .0340 | .86 | 72.2 | 1.1 |
| 30X30 | .0120 | .305 | .0213 | .54 | 63.9 | 1.4 |
| 30X30 | .0094 | .240 | .0243 | .62 | 72.1 | .84 |
Edge Type:
Characteristics and usage:
stainless steel wire mesh is heat-resisting, acid-resisting and corrosion-resisting. This kind of wire mesh is widely used in mining, chemicals, food products and others.
Application:
Used for screen in mine, coal factory, industry, architecture, filter a sand grain, filter the liquid and air, also can be used in the security in machiney fittings.
It can be processed into filter discs of various sizes
It can be cut into size panels in all shapes including, squares, rectangles and circles in all materials and mesh sizes
Black wire cloth is mainly used in filtration mesh of rubber, plastic, petroleum and grains industry
Closed Edge
Raw Edge
Packing:
Company Information

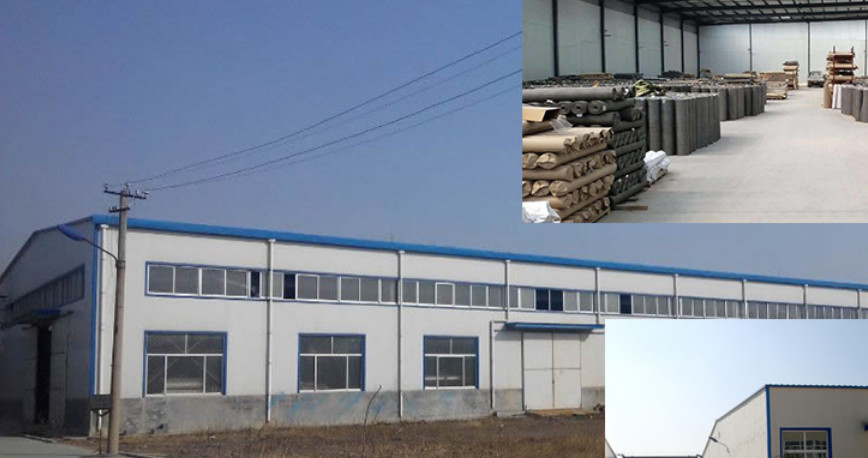

Anping Qianpu Wire Mesh Products Co., Ltd. is located in Anping County, Hebei Province, the famous Chinese industry base and the township of wire mesh. Its west is Beijing-Guangzhou Railway and Beijing- Shenzhen Expressway, the east is the Beijing-Kowloon Railway and the Beijing-Shanghai Expressway, and the south is Shihuang Expressway. Inside the city, there is a large logistics center of railway and highway, so the transportation is so developed.
